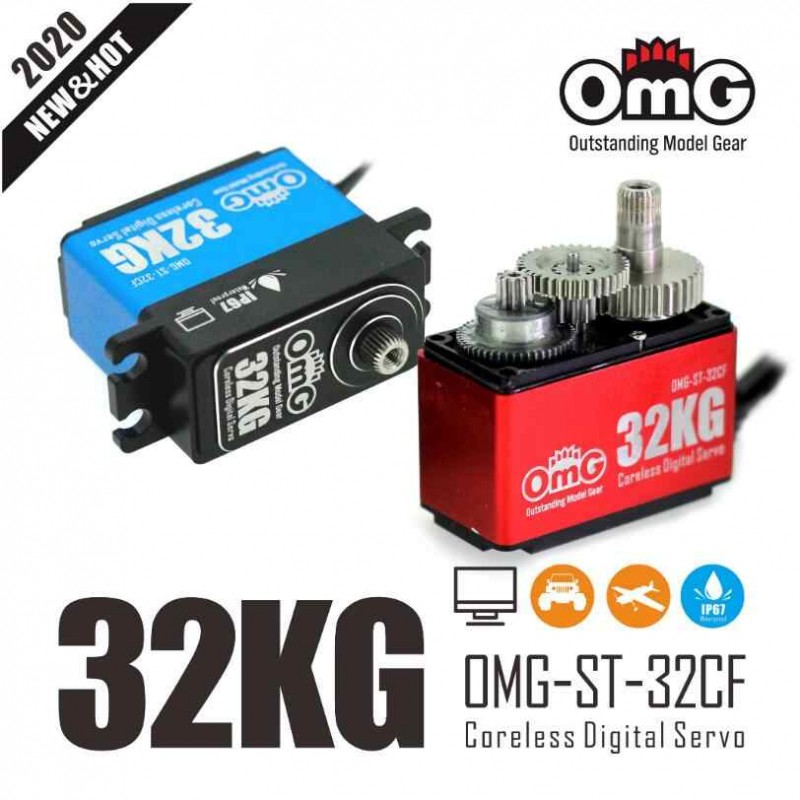

OMG ST 32CF/Rd 32kg/0.08 8.4v (Bu)
72,50 €
Com IVA
Operating voltage: 7.4-8.4V
Operating speed:
7.4V-0.089sec/60'
8.4V-0.083sec/60'
Dynamic torque:
7.4V-29kg-cm
8.4V-32kg-cm
Horn gear spline: 25T
Size: 40x20x38mm
Weight: 77g
Limit angle:180±10°(500-2500μsec)
Rotating direction:180°(1000-2000μsec)
Operating travel :220
Neutral position :1520μsec
Maximum:≈180°(500-2500μsec)
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:315 mm
Connector wire gauge:22PVC
OMG-ST-32CF/Bu
chat
Comentários (0)
De momento, sem avaliações.
Operating voltage: 7.4-8.4V
Operating speed:
7.4V-0.089sec/60'
8.4V-0.083sec/60'
Dynamic torque:
7.4V-29kg-cm
8.4V-32kg-cm
Horn gear spline: 25T
Size: 40x20x38mm
Weight: 77g
Limit angle:180±10°(500-2500μsec)
Rotating direction:180°(1000-2000μsec)
Operating travel :220
Neutral position :1520μsec
Maximum:≈180°(500-2500μsec)
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:315 mm
Connector wire gauge:22PVC
