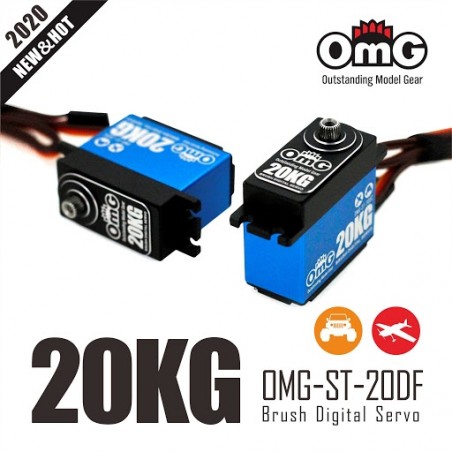

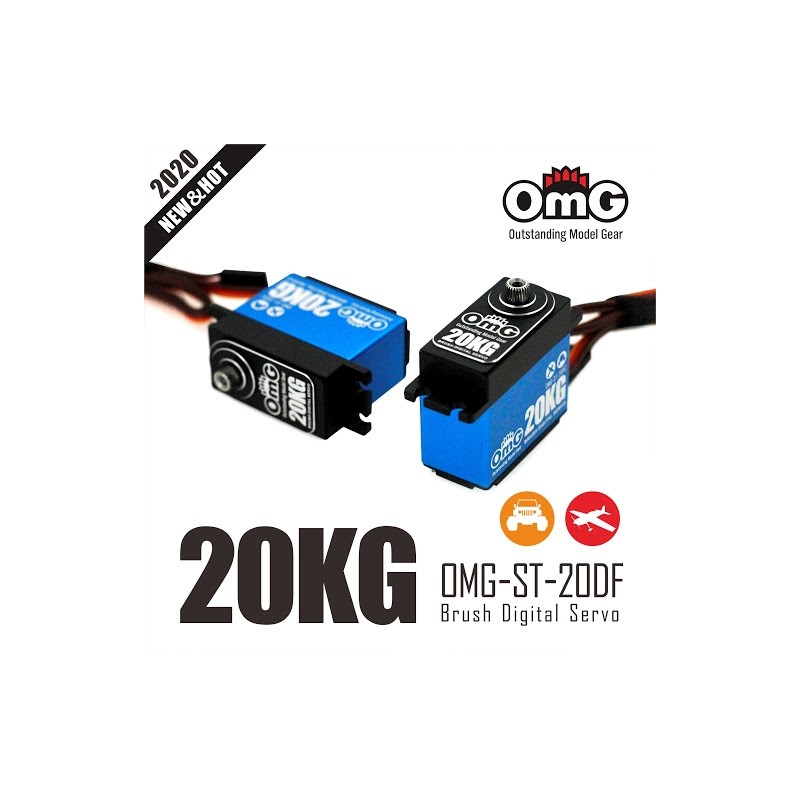

OMG ST 20DF 20kg/0.11 8.4v

Full metal brush HV digital standard servo

Operating voltage: 7.4-8.4V
Operating speed:
7.4V-0.12sec/60'
8.4V-0.11sec/60'
Dynamic torque:
7.4V-20kg-cm
Horn gear spline: 25T
Size: 40x20x38mm
Weight: 66g

Limit angle:180±10°(500-2500μsec)
Rotating direction:180°(1000-2000μsec)
Operating travel :220
Neutral position :1520μsec
Maximum:≈180°(500-2500μsec)
Pules width range  500-2500μsec
Dead band width:2μsec
Connector wire length:350 mm
